Coating Solutions for Metal Roofs

Review surface preparation, coating products, and application specifications. Send your project for review.

  1. Roof or deck
  2. Coating
  3. DocumentsOptional
  4. Project

Metal

Step 2 of 4

Which coating would you like?

Choose an option. Our team will confirm the right system for your project.

Choose acrylic or silicone

Not sure? Call 408.280.7733 and we’ll help.

Metal Roofs

For standing seam, R-panel, and corrugated metal roofs where movement, fasteners, end laps, and penetrations drive leakage.

Choose the published system for the existing surface. Confirm preparation, adhesion, product coverage, and film build before ordering.

Read preparation and application guidance ↓

What to bring to the review

Roof area, location, existing membrane or coating, photos of the field and details, leak locations, and known moisture or drainage concerns help the team review the project.

Estimate materials for this surface →
Read the full Metal coating guide
Step-by-step roof guide

Coating Solutions for Metal Roofs

Standing seam, R-panel, and corrugated metal roofs move with temperature changes and commonly leak at fasteners, horizontal seams, end laps, penetrations, and transitions. Correct the metal and detail failures before selecting an acrylic or silicone weathering surface.

Surface
Metal
Coating choices
Acrylic + silicone
Check the roof
Condition · moisture · adhesion
Files included
Specifications · data · safety · drawings

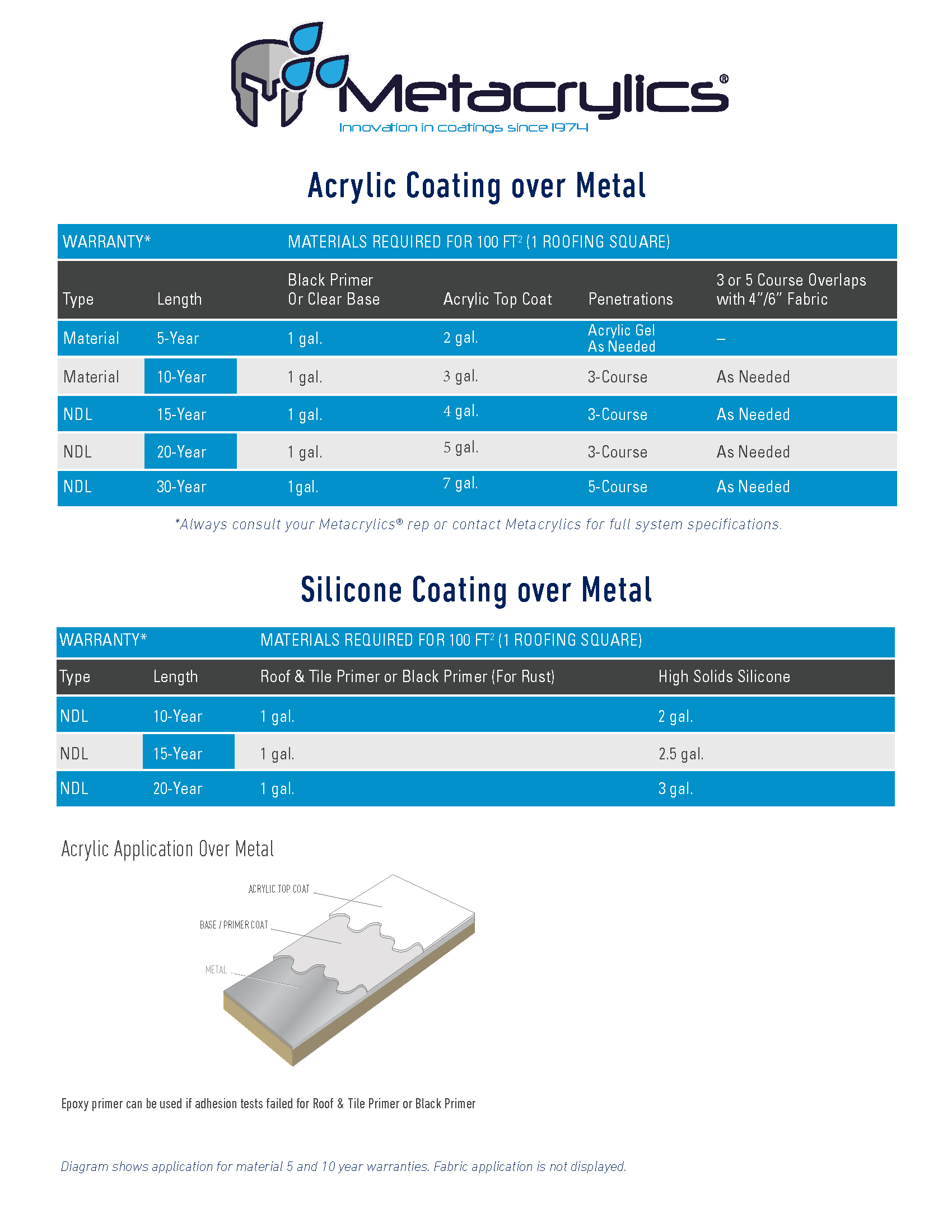

Metal published coating system reference sheet
Field guide / published assemblyMetal

Acrylic steps

  1. Black Primer at prepared rust
  2. Acrylic Gel + Polyester Fabric at details
  3. Acrylic Top Coat

Silicone steps

  1. Roof & Tile Primer or specified Epoxy Primer
  2. Silicone Gel or silicone + fabric at details
  3. High Solids Silicone

Follow the current written specification for preparation, coverage, film thickness, and installation.

Preparation guidance for your installer
01 / Identify

Common roof concerns

  • Rust or corrosion at cut edges, fasteners, and damaged coatings
  • Backed-out fasteners, failed washers, and loose closures
  • Open horizontal seams, end laps, curbs, and penetrations
02 / Prepare

Field preparation

  • Replace loose fasteners and failed closures
  • Remove rust and prime exposed metal
  • Three-course seams, laps, and penetrations
03 / Verify

Release checkpoints

  • Rust is stable beneath Black Primer
  • Every fastener is sealed
  • Movement joints remain able to cycle
More project tools

Need an estimate or more detail?

Use these resources when you need more detail, then return to the project steps.

Estimate MaterialsCarry this roof into the calculatorTechnical DocumentsOpen system, product, safety, and drawing filesColor ChartSearch and compare coating colorsBack to projectYour roof and coating choice stay attached
Metal project questions

Answers before the roof brief.

Use these answers for planning, then follow the current written specification for the project.

Can an existing Metal roof be coated?

A Metal roof may qualify when the assembly is identified, sound, dry, repairable, properly prepared, and proven compatible through project-specific testing. Wet or unsound areas must be addressed before coating.

What preparation does Coating Solutions for Metal Roofs require?

Replace loose fasteners and failed closures. Remove rust and prime exposed metal. Three-course seams, laps, and penetrations. Confirm the selected acrylic or silicone specification before application; preparation varies with the existing surface and field conditions.

How is the material quantity calculated?

The estimator uses measured roof area, detail length, system family, planning term, and a waste or texture allowance. Actual ordering must follow current coverage rates, specified film build, surface profile, and field verification.

Which technical documents belong in the project file?

Start with the system specification, then include the current product data, safety data, applicable detail drawings, approvals, warranty requirements, and any written project-specific instructions.

When should the technical team review the roof?

Request a review whenever the substrate is uncertain, moisture or drainage is a concern, adhesion results vary, prior coatings are present, warranty coverage is planned, or field conditions differ from the published system.
